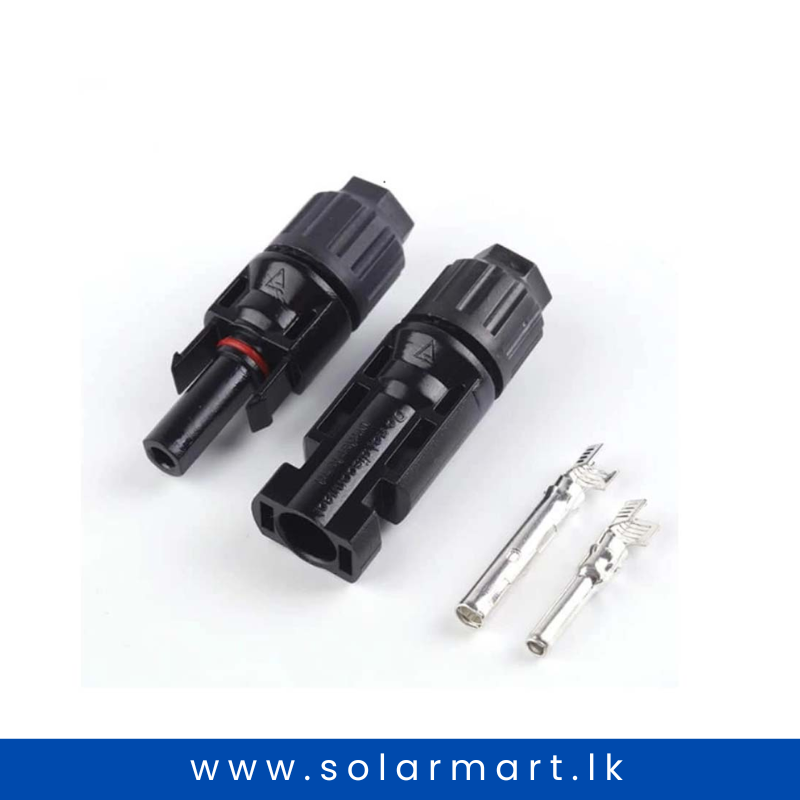

Description
Technical Parameters
| Connector system | Ø 4 mm |
| Rated voltage | 1000 V DC/1500 V DC (TÃœV) 1)
600 V DC/1000 V DC/1500 V DC (UL)2) 1500 V DC (JET)3) |
| Rated current TÜV85 °C) | 39 A (2.5 mm²/14 AWG)
45 A (4.0 mm²/12AWG) 53 A (6.0 mm²/10AWG) 69 A (10.0 mm²/8 AWG) |
| Rated pulse voltage 12 kV (1000 V) | 12kV (1000 V)
16kV (1500 V) |
| Ambient temperature range | -40 °C …+85 °C (TÃœV/UL) |
| Upper-temperature limit | 115 °C (TÜV) |
| Protection class, inserted unplugged |
IP65/IP68 (1h/1m)
IP2X |
| Overvoltage category/contamination class | CAT III/3 |
| Connector contact resistance | ≤0.2 mΩ |
| Safety class | II |
| Connection system | MULTICAM |
| Connection type | Crimp |
| Contact material | Copper, tinned |
| Insulation material | PA |
| Locking system (UL) | recessed |
| Flame retardant class | UL94-V0 |
| Ammonia resistance (by DLG technical regulations) | Q60095359 |
